Standing Seam Roof Panels

The Standing Seam Metal Roof is one of the most exciting breakthroughs in roofing technology in the last 30 years, offering both durability and reliable protection against the weather.

Standing Seam Metal Roofing has an established track record in new construction and is also often used in residential roof replacement.

Attention Roofers!

It is hard to beat our wholesale roof panel prices because we fabricate your order right here in Citrus County! Our factory warehouse in Lecanto is equipped with the SSQ Roof Panel Machine, Commercial & Residential Multi-Profile Roof Panel Machine.

What is the SSQ275?

The SSQ275 is a 2" tall panel that combines technology from the 2" Mechanical Profile and the 1.75" Snap-Lock. Launched at METALCON 2014, New Tech Machinery announced this proprietary panel system that can be snap-locked or seamed. This panel program includes testing and licensing, which can be passed on to end-users, and an Installation and Detail Manual.

SSQ275 Profile Details:

  • Proprietary panel system
  • Can be snap-locked or mechanically seamed
  • Fits in new & existing SSQ Roof Panel Machines
  • Added seam strength due to snap-lock design
  • Licensing agreement valid for three years
  • 2" tall finished panel
  • Ease of installation
  • ASTM, UL, & FM testing included with panel program


Other Roof Panels We Offer:

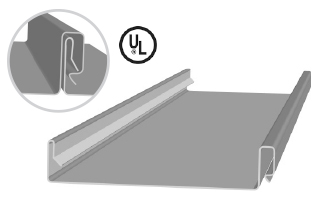

SSQ675     Description: NTM SSQ675 Profile
1-3/4” high x 7/16” wide (44.5mm x 11.1mm) snap lock panel. Includes clip relief.

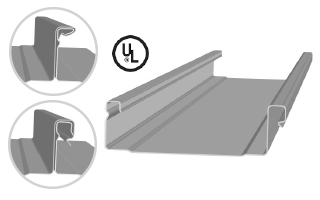

SSQ275Description: NTM SSQ275 Profile
2” high x 13/16” wide (50.8mm x 20.6mm) snap lock / mechanically seamed PROPRIETARY panel. Includes clip relief rollers and hand seamer.


FWQ100       Description: NTM FWQ100 Profile
1” or 1-1/2” high (25.4mm or 38.1mm) wall / soffit / under-decking panel. Available with optional perforation.

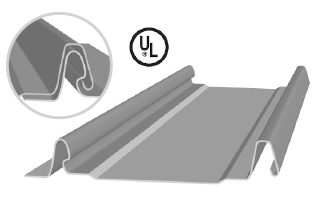

FFQ100           Description: NTM FFQ100 Profile
1“ snap seam (25.4mm) with slotted fastener flange for clipless installation. Includes clip relief rollers and automatic “no chip” rotary slotter.



Advantages of a Metal Roof

  • Can be installed over an old roof
  • Material is lighter
  • More energy efficient
  • Little maintenance
  • Eligible for tax credits and insurance discounts
  • More durable
  • Fire resistant
  • 100 percent recyclable
  • Higher home resale value
  • Longer warranties

Metal roofing comes in a variety of styles, largely dependent on the metal used and coatings applied. Aluminum is a metal that needs no coating.

Aluminum metal roofing is much lighter and can be installed directly over the previous roof. Aluminum weighs only about 50 pounds per square. With proper installation, rain or even hail should sound no different inside a home with a metal roof than it does inside a home with asphalt shingles.

A metal roof will lower your energy bills by about 40 percent in the summer. The reflective surface lessens the transfer of heat into the home. On the other hand, asphalt shingles absorb the sun’s heat, transferring it through the roof to the home, making the home’s cooling system work harder. This is why metal roofs are recommended more strongly for warmer climates.

The higher cost of metal roofing is also offset by its long-life expectancy. A metal roof can last for 60 years or more with little maintenance. Most roofing manufacturers offer a 50-year warranty on metal roofs. However, an asphalt roof will need to be replaced two or three times during that same 60-year period. Warranties for asphalt shingles vary from 20 to 25 years.

Asphalt shingles are susceptible to hail and high wind damage, although fiberglass shingles are more durable than organic ones. Also, if asphalt shingles do not get adequate sunlight, they can accumulate mold, algae, or mildew. Metal roofs, on the other hand, are superior performers in high winds and bad weather, and they are impervious to molds, mildews, and bugs. Metal roofs perform so well under harsh conditions that homeowners in over 25 states are eligible for insurance discounts when they install impact- and fire-resistant metal roofs.

Because a metal roof is strong, durable, and energy efficient, it should increase a home’s resale value. By some estimations, the resale value will increase by 1 to 6 percent over a house with asphalt shingles.


Classic Rib is one of our most popular panels as Classic Rib Metal Roofing Panel is a great choice for both residential and commercial purposes. It is the most economical panels we carry. Available with a 40 year paint warranty, Classic-Rib is a long lasting economical metal roofing or siding product. We custom cut these panels to the inch, from 3' to 40' long saving you time and money. Available in a wide variety of beautiful colors you'll love the look of Classic Rib metal roofing panels on your home.

Specifications
• 36" wide coverage
• 3/4" high ribs spaced 9" apart
• Can be installed over open framing or decking/plywood
• Gauges: 26ga and 24ga

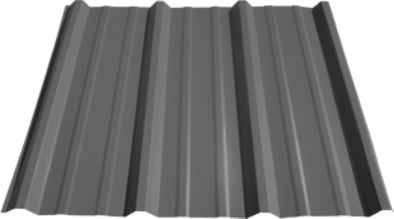

PBR / R  Panels are Metal roofing and siding panels. They are used in a wide variety of applications and are suited for open framing support conditions, as well as a solid substrate. The primarily use of PBR panel is  commercial and industrial buildings. The larger 1-1/4" high ribs make it a great choice for low slope roofs  it is rated for down to  a 1:12 pitch. The design of this metal panel also allow it to span greater distances on open purlin applications. We custom cut these panels to the inch from 1' to 40' long.

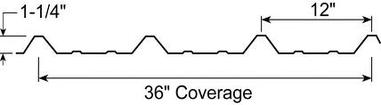

Specifications
• 36" wide coverage
• 1-1/4" high ribs spaced 12" apart
• Can be installed over open framing or decking/plywood
• Gauges: 26ga and 24ga
